F660RA.2.23 - Fassi

Главная страница » Краны » F660RA.2.23

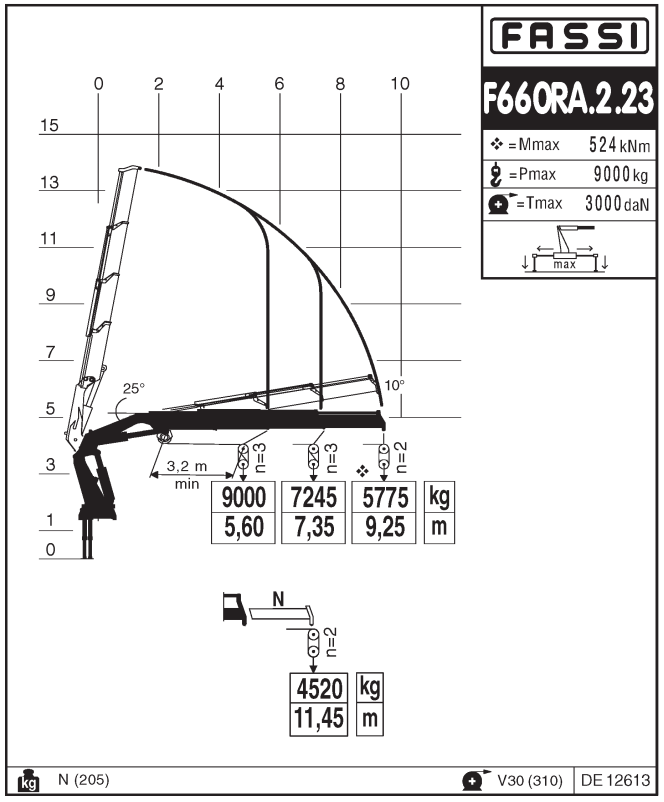

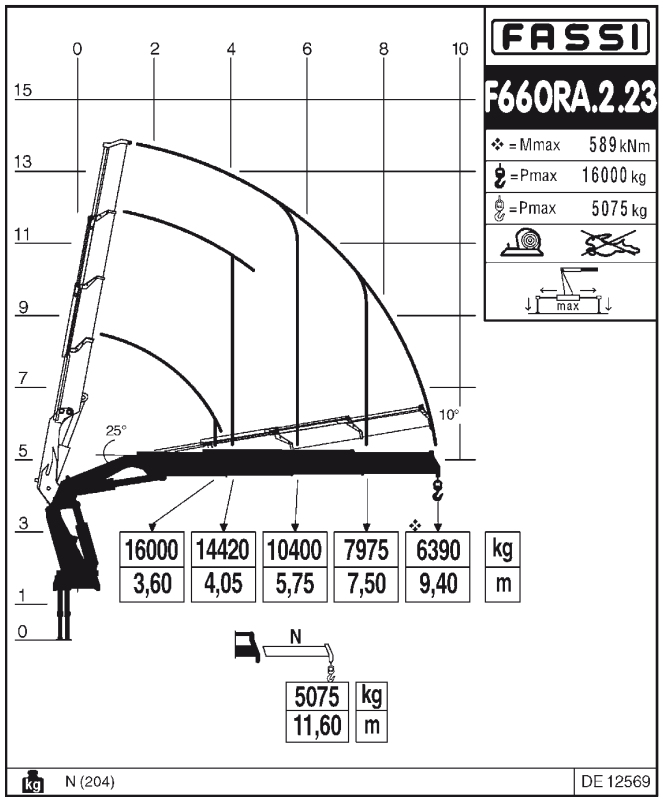

Кран манипулятор F660RA.2.23

Легкие

Средние

Тяжелые

Тросовые КМУ

Специальны


	tm	m	m	°	kNm	MPa	l/min	l	kg	mm	mm	mm
F660RA.2.22	62.08	7.70	3.40	360	45.0	34.0	70-80	250	5135	2505	1520	2465
F660RA.2.23	60.04	9.70	5.35	360	45.0	34.0	70-80	250	5470	2505	1590	2465
F660RA.2.24	58.00	11.85	7.40	360	45.0	34.0	70-80	250	5800	2505	1590	2465
F660RA.2.25	56.78	14.10	9.60	360	45.0	34.0	70-80	250	6110	2505	1590	2465
F660RA.2.26	56.27	16.40	11.80	360	45.0	34.0	70-80	250	6400	2550	1590	2465
F660RA.2.27	55.96	18.55	13.80	360	45.0	34.0	70-80	250	6610	2550	1670	2465
F660RA.2.28	55.35	20.60	15.80	360	45.0	34.0	70-80	250	6790	2550	1670	2465
F660RA.2.25 L414	56.78	23.85	16.20	360	45.0	32.0	70-80	250	7075	2510	1780	2865
F660RA.2.25 L515	56.78	24.30	16.80	360	45.0	32.0	70-80	250	7410	2535	1780	2750
F660RA.2.25 L516	56.78	26.10	18.50	360	45.0	32.0	70-80	250	7510	2535	1780	2750
F660RA.2.26 L414	56.27	26.05	18.45	360	45.0	32.0	70-80	250	7350	2550	1780	2865
F660RA.2.26 L425	56.27	26.55	19.04	360	45.0	32.0	70-80	250	7500	2550	1780	2740
F660RA.2.26 L426	56.27	28.35	20.75	360	45.0	32.0	70-80	250	7600	2550	1780	2740
F660RA.2.27 L214	55.96	28.40	21.10	360	45.0	32.0	70-80	250	7390	2550	1845	2850
F660RA.2.27 L425	55.96	28.55	21.05	360	45.0	32.0	70-80	250	7710	2550	1845	2795
F660RA.2.27 L426	55.96	30.35	22.75	360	45.0	32.0	70-80	250	7810	2550	1845	2795
F660RA.2.28 L214	55.35	30.45	23.10	360	45.0	32.0	70-80	250	7448	2550	1845	2840
